By Pioneer Sealants Ltd — Mastic Man & Specialist Sealant Contractors | Bedford, Bedfordshire & Northamptonshire
If you’re a developer, main contractor, architect, or facilities manager, movement joints and expansion joints are part of every project you work on — but they’re also one of the most commonly misunderstood elements when it comes to sealant specification and mastic man selection. Get movement joint mastic right, and it silently protects the building fabric for years. Get it wrong, and the consequences — water ingress, structural cracking, failed compliance — are expensive to fix.
In this guide, Pioneer Sealants Ltd — a specialist mastic man contractor based in Bedford, serving Bedfordshire and Northamptonshire — explains everything you need to know about movement joints, why they need sealing, what correct mastic man specification looks like, and how to choose a mastic man contractor with the experience to do the work properly.
What Is a Movement Joint?

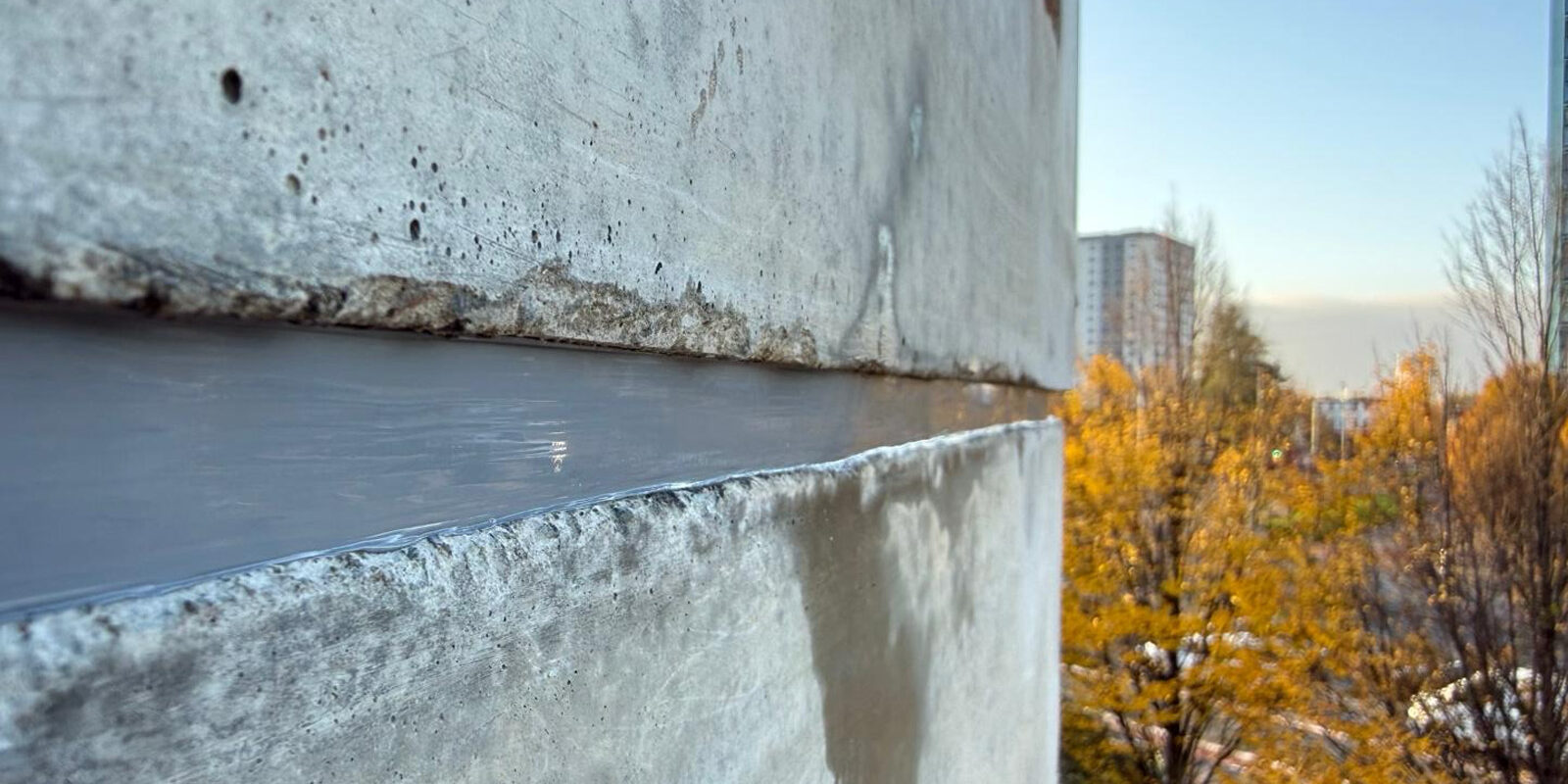

A movement joint — often called an expansion joint or control joint — is a deliberate, designed gap built into a structure to allow controlled movement between adjacent elements without cracking, buckling, or causing damage.
Every building material expands and contracts with temperature change. Concrete, brick, steel, glass, and masonry all respond to heat and cold by changing in dimension — often in tiny fractions of a millimetre per metre per degree, but accumulated across large structures, wide temperature ranges, and many years, this movement exerts significant force. Without a place for this movement to go, the structure itself releases the pressure through cracking.
A movement joint gives that movement somewhere controlled to go. Rather than the building cracking randomly, the joint opens and closes in a predictable, managed way. The mastic man’s job is to seal that joint against water and air infiltration while allowing the movement to continue unimpeded.
This is the critical challenge of movement joint mastic work: the seal must be flexible enough to accommodate ongoing movement, bonded strongly enough to maintain weathertight performance, and specified correctly for the particular substrates, joint dimensions, and movement range involved. A mastic man who does not understand joint movement and sealant specification will not deliver a joint that performs correctly over time.
Why Buildings Have Movement Joints
Movement in building structures comes from several sources, and a professional mastic man works with all of them:
Thermal movement — the most common source. Every material has a coefficient of thermal expansion that defines how much it changes in size per degree of temperature change per unit length. On a large concrete facade or a steel-framed structure, the total thermal movement across a long run can be many millimetres — enough to crack a rigid joint or tear a sealant applied without adequate movement accommodation.
Moisture movement — many materials change dimension when they absorb or lose moisture. Concrete shrinks as it cures and dries. Timber-based products swell when damp and shrink when dry. Clay brickwork expands slightly as it absorbs moisture after firing. A mastic man sealing joints in these materials must account for this.
Structural deflection — floors and frames deflect under load, and the interfaces between structural elements must accommodate this movement. Perimeter joints on floors, joints at structural connections, and joints at changes in structural system are all locations where a mastic man must use appropriately flexible sealant.
Differential settlement — new buildings settle after construction as loads distribute into the ground, and adjacent elements often settle at different rates. Movement joints at connections between building sections with different load profiles allow this differential movement without cracking.
Seismic and dynamic loading — in some structures, movement joints must also accommodate vibration and dynamic effects. A specialist mastic man working on these projects selects products with appropriate dynamic performance characteristics.
Where a Mastic Man Seals Movement Joints
Movement joints requiring professional mastic man attention appear throughout both buildings and civil structures.
Concrete Floors
Movement joints in concrete floors — sometimes called contraction joints, control joints, or saw-cut joints — run in a regular grid pattern across the slab. They control where cracking occurs as concrete cures and as it responds to temperature and loading over time.
A mastic man sealing concrete floor joints faces demanding conditions. The joint must accommodate significant compression and extension as the slabs move seasonally and under loading. In trafficked areas — warehouses, distribution centres, car parks, retail units — joints are crossed repeatedly by forklifts, heavy trolleys, and vehicles, which imposes additional stress on the sealant. An incorrectly specified or poorly applied mastic in a trafficked floor joint will fail rapidly, allowing water infiltration that can cause sub-base damage and progressive joint deterioration.
A professional mastic man selects a polyurethane or hybrid sealant specifically rated for floor joint applications in trafficked environments — not a standard silicone, which lacks the hardness and abrasion resistance required.
External Facades and Cladding
External facade movement joints appear at regular intervals to accommodate thermal expansion and construction tolerances. These joints are typically 10–25mm wide and must be sealed against wind-driven rain, air infiltration, and UV degradation over the full lifetime of the building.
A professional mastic man working on external facades selects a sealant with the correct movement accommodation factor (MAF) for the calculated joint movement, the appropriate adhesion characteristics for the specific substrate materials on each side of the joint, and adequate weathering resistance. Facade mastic man work also often requires a backing rod behind the sealant to control joint geometry and prevent three-sided adhesion — which restricts movement and causes premature failure.
Curtain Wall and Structural Glazing
In glazed facades — curtain wall systems and structural glazing — movement joints between glass panels and aluminium or steel frames are among the most demanding applications for a mastic man. The sealant must provide both weathertight performance and, in structural glazing systems, a degree of structural function — bonding the glass to the frame in a way that distributes loads.
A mastic man working on curtain wall and structural glazing applications must work with products certified to relevant standards, and must follow the manufacturer’s application procedures precisely. The consequences of sealant failure in a glazed facade include water ingress, thermal bridging, and in some cases glass edge damage that compromises the structural integrity of the glazing unit.
Floor-to-Wall Perimeter Joints
In commercial kitchens, wet rooms, changing facilities, laboratories, and food production facilities, the joint between the floor finish and the wall finish is a movement interface — the floor and wall are independent structural elements that move differently. This joint must be sealed with a flexible mastic, not grouted.
A professional mastic man sealing floor-to-wall perimeter joints in commercial environments must select a product appropriate for the cleaning regime. Many commercial facilities use aggressive cleaning chemicals and high-pressure water, which can degrade standard silicone over time. A specialist mastic man selects a chemical-resistant polyurethane or appropriate hybrid sealant for these environments.
Fire-Rated Mastic Applications
Fire-rated mastic joints — also called fire-stop joints or intumescent joints — are one of the most critical mastic man applications on any construction project. These joints seal penetrations through fire-rated walls and floors (pipe, cable, duct, and structural connections) and must expand and char when exposed to fire, maintaining the fire compartmentation of the building for the rated period.
A mastic man applying fire-rated sealant must use a product certified to the required fire rating for the specific joint type, install it in strict accordance with the manufacturer’s system certification, and provide installation records as evidence of compliance. Fire-rated mastic is a life-safety product. Its installation must not be delegated to an unqualified mastic man or a general operative who happens to have a caulking gun.
The Movement Accommodation Factor (MAF) — What Every Mastic Man Must Understand
The movement accommodation factor, or MAF, is the most important technical parameter in movement joint sealant selection — and it is one of the most frequently misunderstood or overlooked by mastic men who lack proper training.
MAF is expressed as a percentage. It represents how much movement a sealant can accommodate as a proportion of the original joint width. A sealant with a MAF of ±25% applied to a 20mm wide joint can accommodate 5mm of compression and 5mm of extension — a total of 10mm of movement.
If the design movement of a joint exceeds the MAF of the specified sealant, the sealant will fail — either by cohesively tearing under extension, or by delaminating from the substrate under compression. Both failure modes allow water ingress and require the mastic man to return and rectify.
Calculating the required MAF involves knowing the materials on both sides of the joint, the temperature range at that location, the joint width and depth, and the other sources of movement in the structure. On specified commercial projects, this information should come from the structural engineer or facade consultant. A professional mastic man working on commercial projects can read and work from a sealant specification — and will raise questions when no specification exists, rather than defaulting to whatever product is convenient.
How a Professional Mastic Man Seals a Movement Joint Correctly
The process a professional mastic man follows for movement joint sealing determines how the joint performs over its lifetime.
Joint inspection and measurement — a professional mastic man assesses the joint width, depth, and condition before selecting a product. Joints that are too narrow, too deep, or in poor condition are flagged before application begins.
Complete removal of old sealant — where the joint has been previously sealed and has failed, a professional mastic man removes all old sealant completely. Applying new mastic over a failed existing joint — whether deteriorated, cracked, or delaminated — is not a repair. It will fail again.
Surface preparation — the joint faces are cleaned of all debris, dust, oil, and contamination. For porous substrates such as concrete, stone, and masonry, a primer compatible with the chosen sealant system is applied and allowed to cure.
Backing rod installation — in most movement joints, a closed-cell polyethylene backing rod is installed to control the sealant depth and provide a bond-breaker at the back of the joint. The correct sealant geometry — typically a width-to-depth ratio of 2:1 or 1:1 — is essential for the joint to accommodate movement correctly.
Masking — adjacent surfaces are masked to protect them from sealant smearing, particularly on polished or sensitive substrates.
Application and tooling — the mastic is applied at consistent pressure to fill the joint completely, then tooled to ensure full contact on both joint faces, the correct profile, and a clean finish. A professional mastic man’s tooling technique is one of the most visible markers of quality.
Choosing a Mastic Man Contractor for Movement Joint Work
Not every mastic man has the knowledge and experience to handle commercial movement joint specification correctly. For safety-critical applications — fire-rated joints, structural glazing, facade joints on high-rise or complex buildings — choosing the wrong mastic man is a risk that has serious consequences.
When selecting a mastic man for movement joint work, ask:
- Do your mastic men hold NVQ Level 2 in Sealant Application?
- Are all operatives CSCS-registered for site work?
- Do you hold SSIP accreditation?
- Have you worked on similar movement joint applications — can you provide references or project examples?
- Can you work from or contribute to a sealant specification?
- What product do you propose for this joint, and why?
A professional mastic man contractor answers all of these questions clearly and confidently. A contractor who can’t specify what product they’ll use or why should not be trusted with movement joint work.
Mastic Man Movement Joint Services — Pioneer Sealants Ltd
Pioneer Sealants Ltd provides specialist mastic man services for movement and expansion joint applications across Bedfordshire, Northamptonshire, and surrounding areas. Our mastic man team has experience across:
- Commercial concrete floor joints in warehouses, retail, and car parks
- External facade, cladding, and masonry movement joints
- Curtain wall and structural glazing mastic systems
- Floor-to-wall perimeter joints in commercial wet environments
- Fire-rated and intumescent mastic systems
- Air-tightness sealing for Part L compliance on new build developments
- New build residential external envelope mastic programmes
We work from client specifications, provide schedule of rates pricing for ongoing programmes, and operate with NVQ-qualified, CSCS-registered mastic man operatives throughout.
